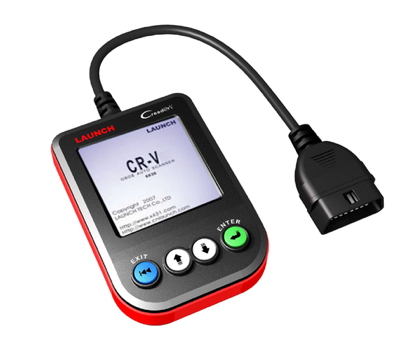

C Reader V

CReaderV is newly developed by LAUNCH, especially designed for car owners or DIY enthusiasts to diagnose any OBDII/EOBD.

It not only can read/clear DTC's, but can also read live data in 2 modes, and perform many special tests.

Continuous Monitors -- Some of the vehicle components or systems are continuously tested by the vehicle's OBD II system, while others are tested only under specific operating conditions.

The continuously Monitored components listed below are always ready:

1: Misfire

2: Fuel System

3: Comprehensive Components (CCM)

Once the vehicle is running. the OBD II system is continuosly checking the above components, monitoring key engine sensors, watching for engine mifires and monitoring fuel demands

Non-Continuous Monitors -- Unlikethe continuous monitors, many Emissions and engine system components require the vehicle to be Operated under specific conditions before the monitor is ready. These Monitors are termed non-continuous and are listed below:

1: EGR Systems

2: O2 Sensors

3: Catalyst

4: Evaporative System

5: O2 Sensor Heater

6: Secondary air Injection

7: Heated Catalyst

8: A/C System

DTC Example

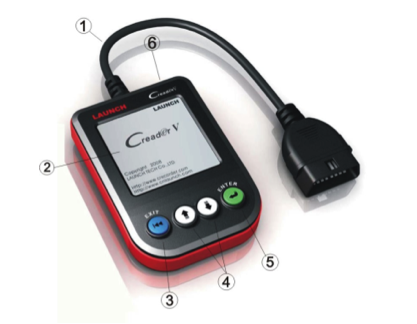

1: Cable with OBD II CONNECTOR -- Connects the CReaderV to the Vehicles Data Link Connetor (DLC).

2: LCD Display -- Indicates test results.

3: Exit Button -- Returns to previous menu.

4: Up/Down Buttons -- Moves cursor up or down for selection

5: Enter Button -- Confims a selection (or Action) from a menu list

6: USB Port -- Connects to computer to update the CReaderV online

Specifications

1: 160 x 160 pixels with backlight for easy reading

2: Operating Temperature 0-60 °C (32 - 140 °F)

3: Storage Temperature -20 to 70 °C (-4 to 158 °F)

4: Power 8 -18 Volts provided via DLC

5: Unit Dimensions 126mm x 88mm x 22mm (Lenght x Width X depth)

6: Test Cable lengh 0.9m

Supported Protocols:

OBDII ISO9141

SAE J1850VPW

SAE J1850PWM

EOBD ISO 14230 KPW

CANBUS ISO15765

Accessories Included:

1: User Manual

2: USB Cable for connecting to a PC and Upgrading online

3: Power Supply ( The power of the CReaderV is provided via the vehicle Data Link Connector (DLC).

Follow the steps below to power it up:

1: Find DLC on vehicle

( A plastic cover may be found for some vehicles and you need to remove this before plugging in the OBD2 Cable)

2: Plug the connector into the OBD socket
